Tiny Home - 573 Ft² - 1 Bedroom Bungalow With Mezzanine

Compact, functional, and full of charm. This 573 ft² bungalow, with its Nordic and minimalist design, takes advantage of the height to offer a cozy and versatile space, perfect for those seeking comfort without sacrificing style.

On the first level, the intelligent distribution allows you to enjoy a compact kitchen, a guest bathroom, and a utility room. It also features a flexible room that can be transformed into a social lounge or a bedroom, depending on the needs of the moment.

The mezzanine elevates the experience of living in this bungalow, housing a private master bedroom and a bathroom with a bathtub, creating an ideal corner for rest and relaxation.

This model not only optimizes space but also offers an elegant and adaptable solution, perfect for those seeking a practical and sophisticated retreat in nature.

Specifications

• Total Surface area (excluding architectural finishes) = 573 ft².
• Height (between slab and bottom of roof rafters = 8 ft.
• Roof Tilt Angle: Tilted Roof
• Building has to be installed on a slab on grade or a reinforced concrete wall.
• Seismic Load as per Canadian Building Code 2015
• Wind Load as per Canadian Building Code 2015 (Location the city of Montreal - Province of Quebec) - Please contact us for other Locations in Canada or the USA.
• Snow Load as per Canadian Building Code 2015 (Location the city of Montreal - Province of Quebec) - Please contact us for other Locations in Canada or the USA.
• Dead Load on Roof and Wall is distributed on Beams (15 PSF).
• Roof Live Load is 21 PSF = 1 KPa.
• Loads are adjusted to your region
• Required Quantity of Galvanized Steel = 5,768 Lb (108.2 Lb of Steel /m² of Usable Space) or (10.06 Lb/Ft² of Usable Space).
• loads are adjusted by region

• Choice of 3.5 inch studs or 5.5 inch studs

🛠️ What’s Included:

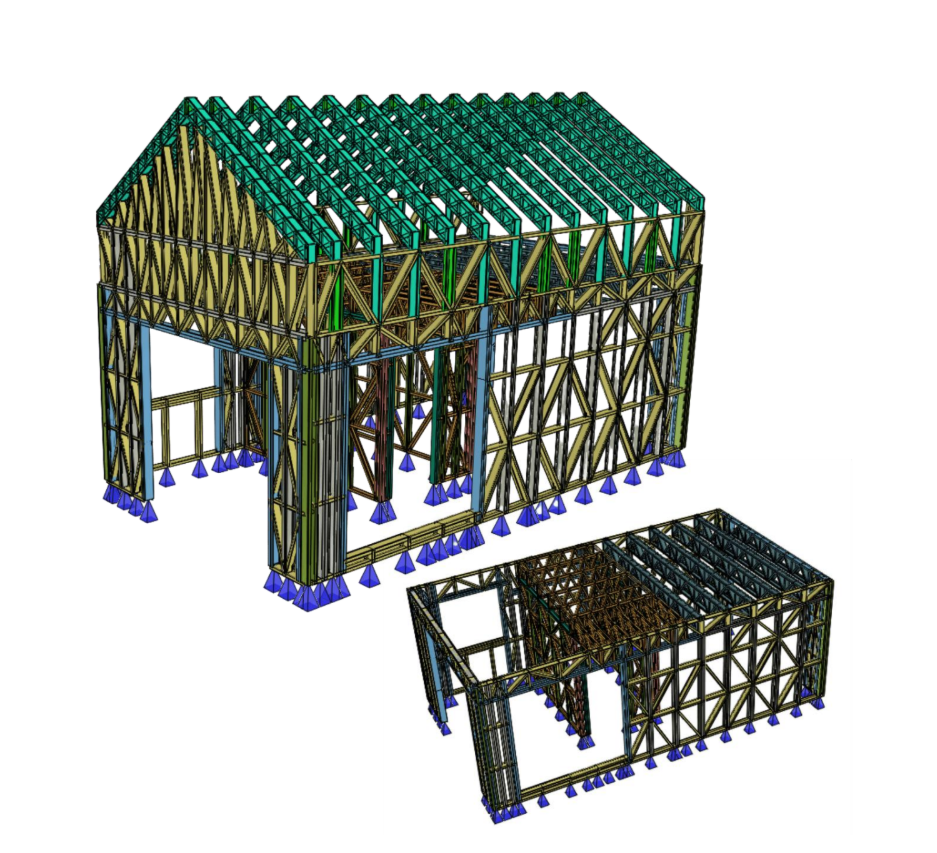

• Full light gauge steel framing system (studs, trusses, headers, joists)

• Architectural layout & connection details

• Framing layout drawings and documentation

• Optional: SIP panels, exterior cladding, insulation, CSA approved doors & windows package, solar readiness kit

Price does not include tax and shipping.
