Tiny Home - 367 Ft² - 1 Bedroom Bungalow

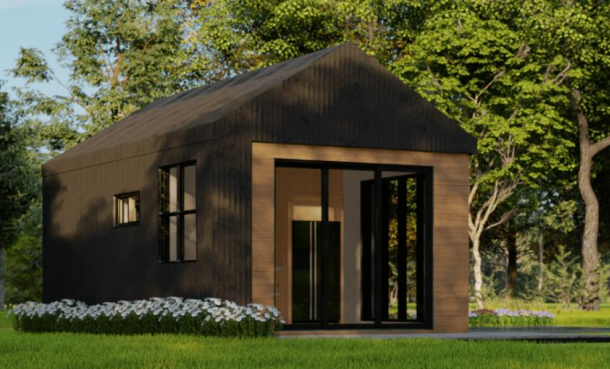

This 336 ft² bungalow, inspired by the Nordic style, is the perfect retreat for those seeking to disconnect from the world and immerse themselves in the serenity of nature.

A perfect modern design Tiny House.

Each space has been precisely designed to offer functionality and warmth. Its integrated kitchen, although compact, is practical and cozy, ideal for preparing every special moment. The functional bathroom provides comfort without complications, while the spectacular bedroom becomes the perfect corner for absolute rest.

This bungalow is not just a dwelling; it is an invitation to enjoy simplicity, tranquility, and the charm of well-thought-out spaces.

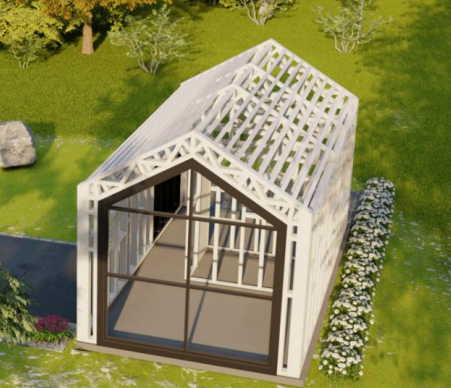

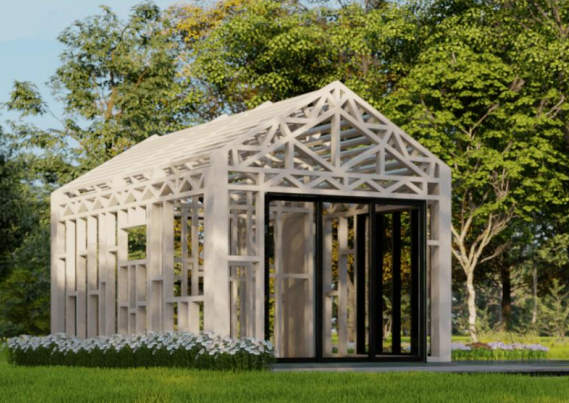

This is a galvanized steel frame kit.  What is unique about this building system is that everything connects to the frame by self-tapping screws.

Specifications

• Total Surface area (excluding architectural finishes) = 336 ft².
• Height (between slab and bottom of roof rafters = 9.4 ft.
• Roof Tilt Angle: Tilted Roof
• Building has to be installed on a slab on grade or a reinforced concrete wall.
• Seismic Load as per Canadian Building Code 2015
• Wind Load as per Canadian Building Code 2015 (Location the city of Montreal - Province of Quebec) - Please contact us for other Locations in Canada or the USA.
• Snow Load as per Canadian Building Code 2015 (Location the city of Montreal - Province of Quebec) - Please contact us for other Locations in Canada or the USA.
• Dead Load on Roof and Wall is distributed on Beams (15 PSF).
• Roof Live Load is 21 PSF = 1 KPa.
• All loads will be adjusted to your region
• Choice of 3.5 inch studs or 5.5 inch studs

🛠️ What’s Included:

• Full light gauge steel framing system (studs, trusses, headers, joists)

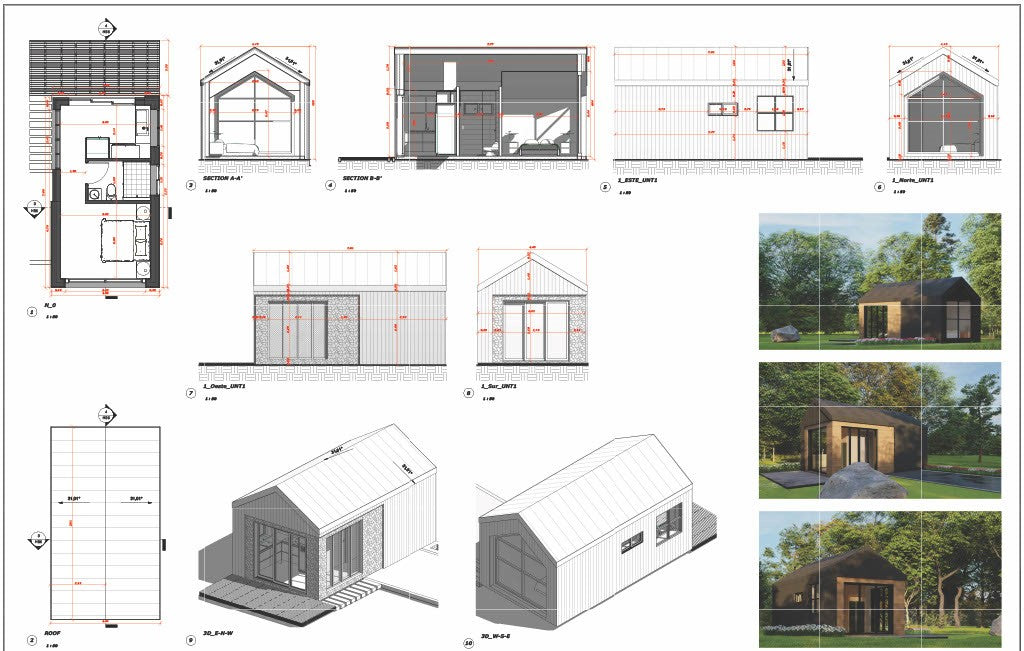

• Architectural layout & connection details

• Framing layout drawings and documentation

• Optional: SIP panels, exterior cladding, insulation, CSA approved doors & windows package, solar readiness kit

The standard weight of this kits is as follows;  Required Quantity of Galvanized Steel = 4,574 Lb (133.82 Lb of Steel /m² of Usable Space) or (12.44 Lb/Ft² of Usable Space).  Each modular piece is light weight.

Price does not include shipping or taxes.
