Single Family Home - 2,260 Ft² - 3 Bedrooms Farmhouse Bungalow

Elegant and modern Bungalow, made from light gauge steel frame (LGSF). This design is Net Zero Ready for future solar panels installation

Specifications

• Total Surface area (excluding architectural finishes) = 2260 ft².
• Total Indoor Living Space = 2260 ft².
• Additional Heated Attic Storage Space = 400 ft² (300 ft² above bedroom and 100 ft² above mechanical room in garage for winter tires storage).
• Height (between slab and bottom of roof rafters = 9'-6" ft.
• Roof Tilt Angle: 30 degrees (ready for solar panels installation).
• Building has to be installed on a slab on grade or a reinforced concrete wall.
• Seismic Load as per Canadian Building Code 2015
• Wind Load as per Canadian Building Code 2015
• Snow Load as per Canadian Building Code 2015
• Dead Load on Roof and Wall is distributed on Beams (15 PSF).
• Roof Live Load is 21 PSF = 1 KPa.
• Loads adjusted by region.

🛠️ What’s Included:

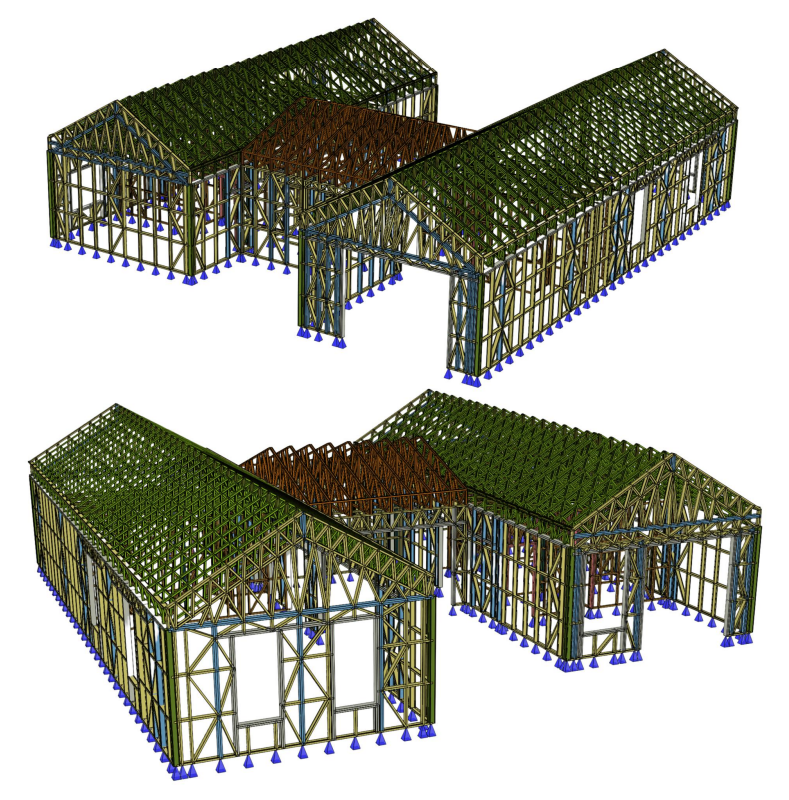

• Full light gauge steel framing system (studs, trusses, headers, joists)

• Architectural layout & connection details

• Framing layout drawings and documentation

• Optional: SIP panels, exterior cladding, insulation, CSA approved doors & windows package, solar readiness kit

Taxes and shipping are extra.
