Single Family Home - 1,929 Ft² - 2 Bedrooms Bungalow

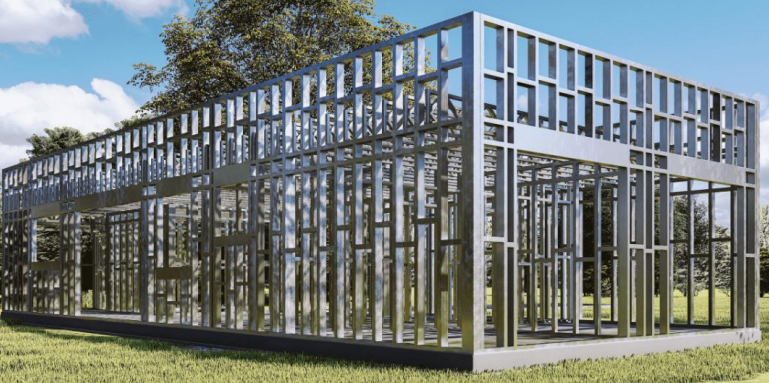

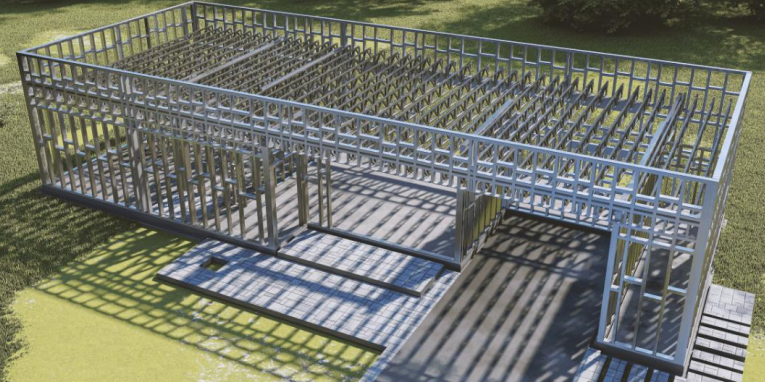

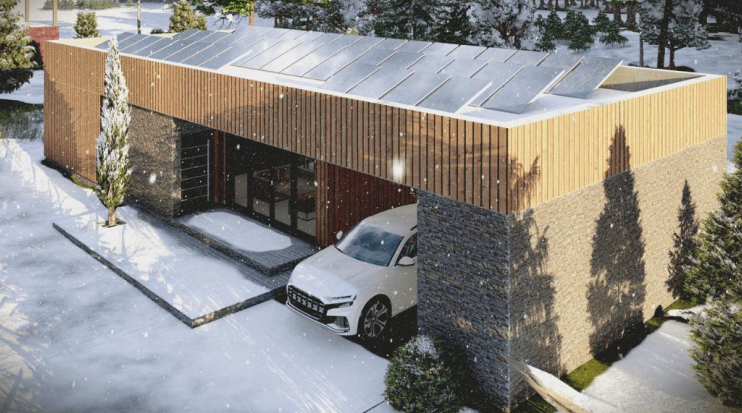

Elegant and modern Flat Roof bungalow, made from light gauge steel frame (LGSF). This design is Net Zero Ready for future solar panels installation.

Metal frame kit $74,541.16

Specifications

• Total Surface area (excluding architectural finishes) = 1929 ft².
• Total Indoor Living Space = 1545 ft² or 1929 ft²
• Total Roofed Car Parking & Entrance = 384 ft².
• Height (between slab and bottom of roof rafters = 9 ft.
• Roof Tilt Angle: Flat Roof
• Building has to be installed on a slab on grade or a reinforced concrete wall.
• Seismic Load as per Canadian Building Code 2015
• Wind Load as per Canadian Building Code 2015 (Location the city of Montreal - Provicne of Quebec) - Please contact us for other Locations in Canada or the USA.
• Snow Load as per Canadian Building Code 2015
• Dead Load on Roof and Wall is distributed on Beams (15 PSF).
• Roof Live Load is 21 PSF = 1 KPa.
• Loads are adjusted by region

🛠️ What’s Included:

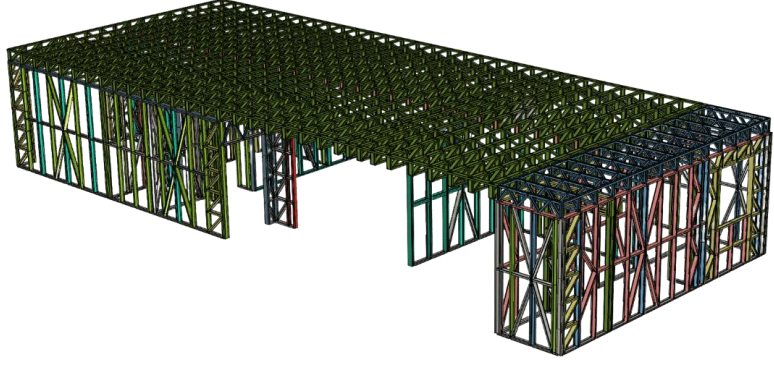

• Full light gauge steel framing system (studs, trusses, headers, joists)

• Architectural layout & connection details

• Framing layout drawings and documentation

• Optional: SIP panels, exterior cladding, insulation, CSA approved doors & windows package, solar readiness kit

• Options:

1. Add insulation and exterior cladding.
2.  Add solar power
3. Add Prefab kitchens and bathrooms

Price does not include shipping or taxes.
