Mechanic Shop - 2,246 Ft² Area, 16 Ft Height, (x2) Door 10x10 Ft

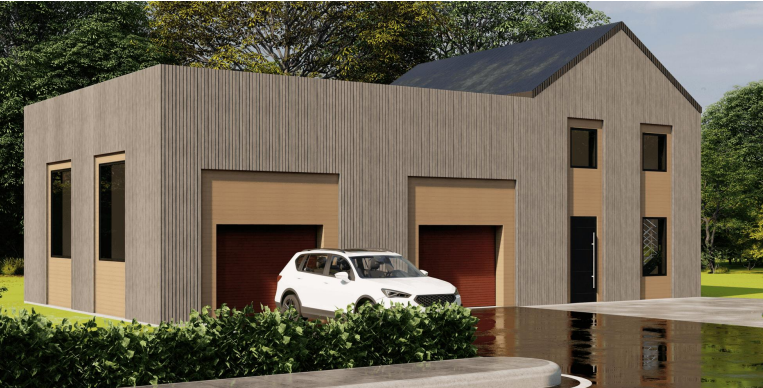

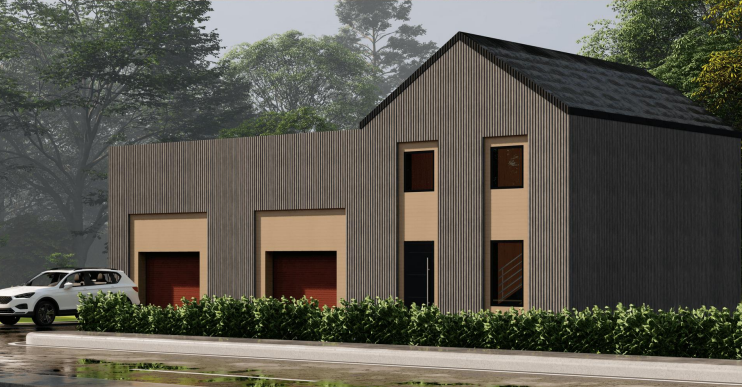

Industrial / Commercial Building, ideal for mechanic's repair shop. Building consist of 2 bays, 17x30 ft each with 10x10ft Garage Door and a 2 floors (20x30 ft each floor) office space. Total usable space is 2,246 ft². Metal frame kit $97,837.27

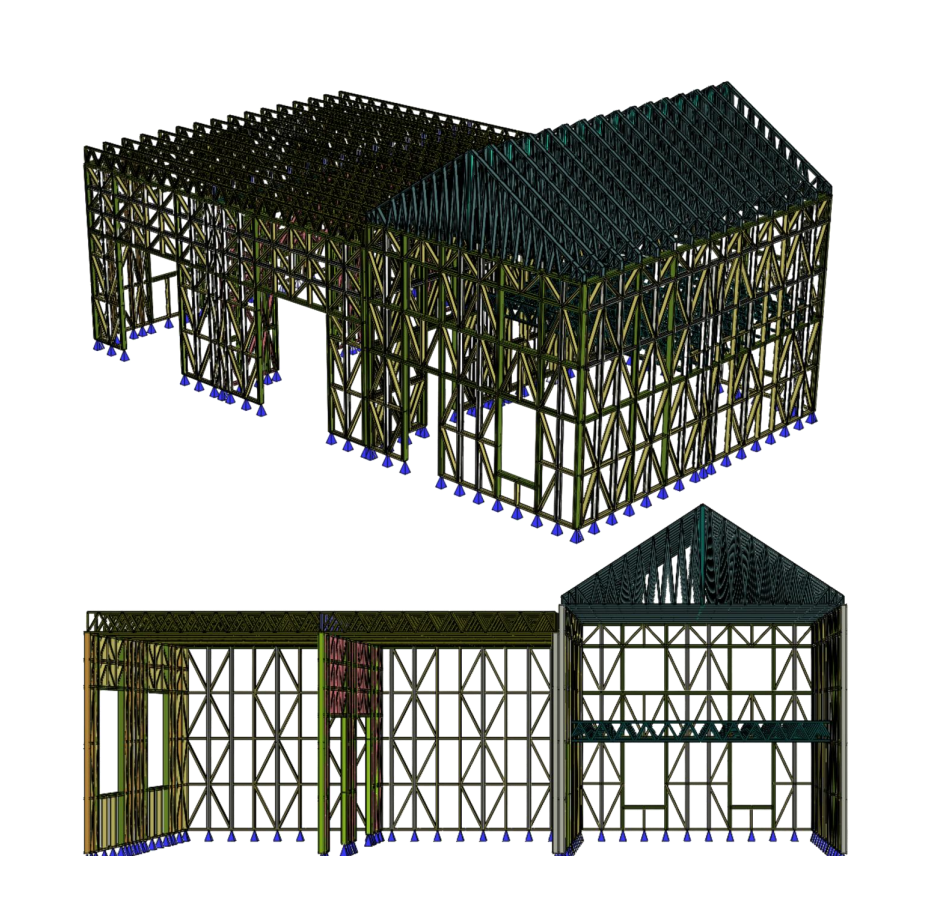

LGSF – Internal and external walls + Roof Trusses (Before shipping and taxes).

 Included in the kit

1. Panels manufacturing and pre-assembly at factory in modules of 8.5 ft width (no limit on height).
2. Screws and necessary accessories for panels assembly.
3. Simpson strong ties materials (for shear wall, etc..

Option 1 Add insulation and cladding

Option 2 Add insulation, cladding and metal roof

Specifciations:

• Total Surface area (excluding architectural finishes) = 2,246 ft².
• Height between slab and bottom of roof in shop = 16 ft.
• Height between slab and bottom of roof rafters in office = 8 ft (Ground Floor) 8.5 ft (Mezzanine).
• Doors Opening: 10x10 ft.
• Roof Tilt Angle (Office): 4/12.
• Building has to be installed on a slab on grade or a reinforced concrete wall.
• Seismic Load as per Canadian Building Code 2015
• Wind Load as per Canadian Building Code 2015 (
• Snow Load as per Canadian Building Code 2015
• Dead Load on Roof and Wall is distributed on Beams (15 PSF).
• Loads adjusted by region.

Taxes and shipping not included.
